KitchenAid Coffee Grinder Settings: How to Dial In the Right Grind Every Time

Written by Sarah Jenkins, 5 years hands-on experience with home coffee equipment. Last updated: July 2026.

My first morning pouring an oily dark roast into the hopper, the burrs choked up completely. I quickly learned why. Mastering your specific kitchenaid coffee grinder settings means knowing your exact machine.

The KCG0702CS burr unit provides 15 distinct steps. These numbered marks scale from one to eight in simple half-step clicks. The BCG111ER blade version lacks a physical dial, relying on manual timing instead. This guide explores both styles.

We will also look at fixing common issues. A quick and simple cleaning routine keeps your daily brewing running smoothly. Read on.

What Do the KitchenAid Coffee Grinder Settings Actually Mean?

The KCG0702CS dial runs from 1 (finest, built for espresso) to 8 (coarsest, built for French press). Between those two numbers sit half-steps — 1, 1.5, 2, 2.5, and so on — for 15 total positions.

Turning the dial moves the burr chamber. A lower number closes the gap between the burrs, so beans get chopped into smaller pieces. A higher number opens that gap wider, and the grounds come out chunkier. The half-steps exist because a full number can be a big jump between two brew methods. Nudging half a step lets you fine-tune within one method instead of jumping past it.

One detailed grind-size chart puts the KCG0702CS’s range at roughly 280 to 1070 microns across the full dial, from powder-fine at setting 1 to coarse and breadcrumb-like at setting 8. The burrs themselves are stainless steel, and they turn at 450 RPM. That’s slow for a home grinder. Some higher-end models spin well past 1,000 RPM. The slower speed matters because less friction means less heat, and heat is what cooks off delicate flavor before the coffee ever hits water.

Full numbers change the grind size more than half-steps do. That’s the whole point of the half-step design — it gives you a way to fine-tune between two full settings instead of overshooting.

Grind settings are only one part of getting better coffee. For a full rundown of features, maintenance, and buying advice, check out our KitchenAid Coffee Grinder Complete Guide

How to Choose the Right Setting for Your Brew Method

Match the number on the dial to your brew method. Lower numbers work for pressure-based brewing. Higher numbers work for full-immersion brewing.

Setting (approx.)	Brew Method	Texture Reference
1–2	Espresso	Powder-like, sticks together
2.5–4	Moka pot / AeroPress	Fine, slightly gritty
4.5–5.5	Drip coffee makers (Cuisinart, Keurig with reusable filter)	Sand-like
6–6.5	Pour-over	Coarse sand
7–8	French press / cold brew	Coarse, breadcrumb-like

If you’re not sure where to start, set the dial to 4 or 4.5 first. That lands you in drip territory, which is the most forgiving range on this grinder. From there, nudge half a step at a time until the coffee tastes right. Going straight to setting 1 for a first-ever espresso attempt usually chokes the machine instead of teaching you anything.

The KCG0702CS doesn’t show you a micron count anywhere on the dial. Some pricier grinders, like Baratza’s Encore ESP Pro, add a digital display that tracks your position to the half-step and even flags an espresso-friendly range. The KitchenAid skips all of that. You get a printed number and nothing else. That trade-off keeps the unit simple and affordable, but it also means espresso dialing-in relies more on taste-testing than on hard data.

Roast type changes things too. I’ve noticed dark, oily beans clump at the same setting where light roasts stayed loose and free-flowing. On a rushed weekday morning, that clumping can jam the burrs before you’ve even finished pouring. Bumping the dial up by half a step usually clears it right up, especially if you’re switching from a light roast you used all week to a darker one for the weekend.

Getting your kitchenaid coffee grinder settings dialed in isn’t a one-time task — it shifts slightly with every bag of beans you open.

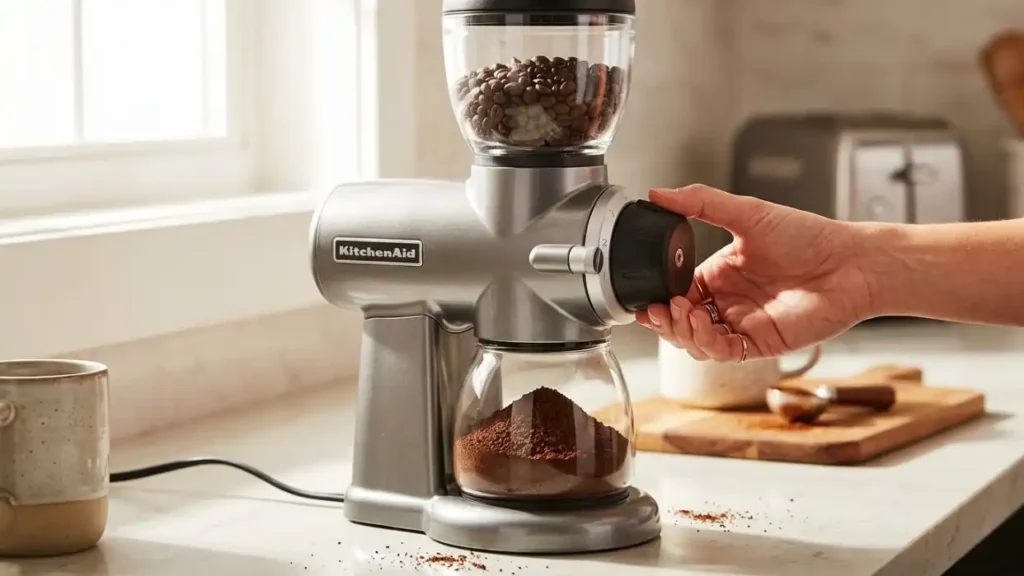

Step-by-Step — How to Adjust and Lock In a Grind Setting

Turn the dial while the grinder is running, or right after you switch it off. That single habit prevents most of the setting problems people run into.

Here’s the full process:

1. Fill the 7 oz. (200 g) glass hopper with beans.
2. Attach the grind jar and confirm it’s seated.
3. Flip the power switch on.
4. Rotate the dial to the desired number while the burrs are turning.
5. Let it run until beans clear the hopper.
6. Flip off, remove the jar, and tap out the grounds.

KitchenAid’s own manual backs up step 4 directly. Leftover beans often sit trapped between the burrs after a grind cycle ends. Adjusting the dial while those beans are still in there can strain the burrs and cause real damage over time. Turning the dial with the motor running lets everything clear out smoothly instead.

You’ll feel a difference depending on where you land on the dial. At the finest settings, 1 through 1.5, the dial gets noticeably stiffer to turn. That’s the burr chamber closing down tight, and it’s normal.

Grind time changes with the setting too. A batch ground at setting 7 for French press clears the hopper faster than the same amount ground at setting 4. Finer settings force the burrs to break beans down further, so the motor works longer per batch. If your grinder suddenly seems to take much longer at a setting that used to run quick, that’s usually a cleaning issue, not a burr problem — more on that shortly.

The KitchenAid Blade Grinder (BCG111ER): Why There’s No Dial

The BCG111ER skips the dial entirely. Grind size comes down to one thing: how long you hold the top cover down.

Operation is about as simple as it gets. Push the clear cover down to start grinding, and let go to stop. A dual safety switch keeps the blade from spinning unless that cover sits correctly in place, so there’s no accidental startup while your hand’s still near the bowl.

The stainless bowl holds 4 oz. of beans, with etched markings for 4, 8, 10, and 12 cups. Fill to the line you need and you’re set.

Here’s the trick that actually improves results: pulse in short 2 to 3 second bursts, and shake the bowl between each one. Beans near the blade grind fast, but beans sitting higher up barely get touched during one long hold. Shaking redistributes them so every bean gets a turn near the blade.

You’ll notice the motor sound stays steady the whole time, unlike a burr grinder, which quiets slightly once beans thin out near the end of a batch.

I’ll be honest about the trade-off here. Blade grinding can’t match a numbered burr setting for consistency. You’ll get fine dust mixed with larger chunks in the same batch, and that unevenness shows up most in pour-over and espresso, where extraction depends on uniform particle size.

Burr vs. Blade — Which One Actually Gives You Setting Control?

If repeatable settings matter for your brew method, the burr grinder wins. The KCG0702CS is built for that job. The BCG111ER trades precision for speed.

Feature	KCG0702CS (Burr)	BCG111ER (Blade)
Grind settings	15 (numbered dial)	None (time-based)
Grind mechanism	Stainless burrs, 450 rpm	Stainless blade
Best for	Espresso through French press	Drip coffee, quick batches
Hopper/bowl size	7 oz.	4 oz.
Repeatable results	High	Low–moderate
Approx. price	$359	$84.99

I keep the burr grinder out on weekends. Batch brewing for a full pot rewards a dialed-in setting you can return to every time. Weekday mornings are different. I’m usually out the door in ten minutes, and the blade grinder’s push-and-hold speed beats hunting for a number on a dial.

Neither model exists in a vacuum. Shoppers comparing options often look at Cuisinart’s burr grinders, which add a digital cup selector, or Breville’s higher-end units with programmable grind times. Those extras cost more. The KitchenAid pair keeps things simpler: one dial, one button, no screens to learn.

Picking between them comes down to one question. Do you brew the same way every day, or does it change with your schedule?

Troubleshooting — When the Setting Doesn’t Match the Grind You’re Getting

If the grind looks finer or coarser than the dial suggests, it’s rarely a broken dial. Bean oil buildup in the burr chamber is almost always the real cause.

I’ve seen other KCG0702 owners hit this exact wall. One review described the grind slowly turning inconsistent over time, even though nothing on the dial had changed. They pulled the unit apart, brushed out the burr chamber, and checked the burrs themselves. The burrs looked fine. Once reassembled, the grinder ran like new again.

That matches what I’d expect from oil residue, not wear. Dark, oily roasts leave a film behind after every batch. That film builds slowly, and a setting that once produced sand-like grounds starts producing something closer to fine dust instead. A quick brush-out with the included cleaning tool usually fixes it in a few minutes.

Static cling is a separate issue, but it shows up the same way—grounds sticking stubbornly to the jar walls instead of falling clean. Fine settings make this worse, since smaller particles carry more charge relative to their size. Coarser settings tend to shed static faster.

One more quirk worth knowing: right after you move the dial, the first few seconds of grounds can still reflect the old setting. Give it a moment to flush through before judging the result. If none of this fixes an unresponsive dial or a grinder that won’t start at all, that’s a different problem—see our guide on what to do when a KitchenAid coffee grinder isn’t working.

Maintenance Tips to Keep Your Settings Accurate Long-Term

A quick brush-out after oily roasts and a monthly deep clean keep the numbered settings reliable for years. Skipping that habit is the fastest way to make a good grinder feel unpredictable.

Once a week, pop the hopper off and brush loose grounds away from the burrs. Grounds hiding in the gaps can throw off your next batch, even at a setting that’s always worked before.

After a dark or oily roast, wipe down the inside of the hopper too. Oil residue is the number one reason a “known” setting suddenly grinds finer or coarser than expected. For the full rundown on tools and technique, our guide on how to clean a KitchenAid coffee grinder walks through it step by step.

The bean hopper, hopper lid, and grind jar are all dishwasher-safe, top rack only. That makes a deep clean easy to fold into your normal dish routine instead of treating it as a separate chore.

The die-cast metal body holds up well over years of daily use. In my experience, the glass hopper is the part most likely to need replacing, usually after a drop rather than wear. If something does go wrong early on, the KCG0702CS carries a one-year full warranty from the date of purchase, which covers manufacturing defects under normal home use.

FAQs

How many grind settings does the KitchenAid burr coffee grinder have?

The KCG0702CS gives you 15 settings total. They run in half-steps, from 1 (finest) to 8 (coarsest).

Is the KitchenAid coffee grinder BPA-free or food-contact safe?

The bean hopper and grind jar are glass, and the burrs are stainless steel. Both materials are standard, safe choices for food contact.

Can you use the KitchenAid blade grinder for spices, not just coffee?

Yes, but keep a separate bowl for it. Spice oils and aromas can transfer into your next batch of coffee. KitchenAid sells a spice grinder accessory kit, the BCGSGA, built for exactly this.

How long does the burr grinder’s warranty last, and does it cover the burrs?

The KCG0702CS carries a one-year full warranty from the date of purchase. It covers manufacturing defects under normal home use, but not damage from drops, accidents, or unauthorized parts.

Where can I buy replacement parts, like the glass hopper or grind jar?

KitchenAid’s parts site carries official replacements. Third-party brands like Univen also sell compatible glass jars. Just double-check the part matches your exact model number before you order.
