How to Setup SMEG CGF03 Burr Coffee Grinder (Step-by-Step)

The box is open, the parts are spread across the counter, and it isn’t obvious what goes where. Setting up the SMEG CGF03 takes a few minutes, but dialing in the grind takes longer. This guide covers how to setup SMEG CGF03 Burr Coffee Grinder hardware in the right order. It also covers portafilter use and a fix for clumping. You’ll get a starting grind map for each brew method too.

What Should You Check Before Setting Up the CGF03?

Confirm you have a U.S.-voltage unit, every part in the box, and room for a grinder about 13.6 inches tall. A two-minute check now can save you a return later. If you’re still choosing between models, the Smeg coffee grinder complete guide compares the CGF03 and CGF11.

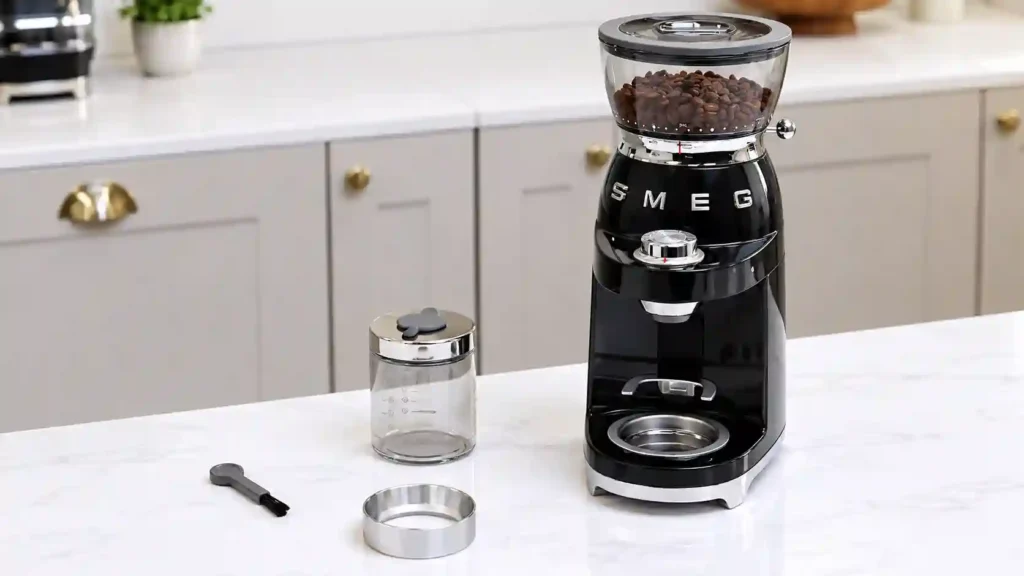

What’s in the box

Part	What it does
Bean hopper	Holds 240 g (8.8 oz) of beans
Ground-coffee container	Twist-and-lock fit, with a silicone cap; holds about 130 g
Container support plate	Sits under the outlet
58 mm aluminum dosing funnel	Guides grounds into a portafilter
Steel portafilter support	Holds the portafilter under the outlet
Cleaning brush and manual	The manual has a QR code for the My Smeg Assistant app

The container holds roughly half of what the hopper does. If you fill the hopper and grind it all, you’ll be emptying the container more than once.

Voltage, model suffix, and counter space

U.S. models end in “US,” such as CGF03BLUS. They run on 120V at 60 Hz and draw 150 W. EU units are built for 220–240V, so skip imports. Keep the grinder away from cookers and other heat sources.

Height is the detail most buyers miss. Smeg lists the grinder at 345 mm, or about 13.6 inches, with the hopper on. Measure your under-cabinet clearance before you unbox it.

Footprint numbers are less consistent. Smeg’s U.S. spec lists 9 7/8 inches wide and 6 3/4 inches deep. One U.S. retailer lists them the other way around. Clear a patch of counter that works either way.

The cord is 39 3/8 inches long, and it wraps into the base for storage.

With the box checked, you can start the actual assembly.

How Do You Set Up the SMEG CGF03 Step by Step?

Wash the hopper and container, lock the hopper onto the base, fit the container, plug in, add beans, and run a test grind. Here is how to setup SMEG CGF03 Burr Coffee Grinder parts in the order that avoids most mistakes. A badly seated hopper or container is the usual reason a Smeg grinder won’t start.

1. Unpack everything. Remove all packaging and any promo labels. Check the hopper and container for stray foam.
2. Wash the removable parts by hand. Use warm water and mild soap on the hopper, container, lid, and support plate. Dry them fully. Keep the motor base away from water.
3. Place the base on a level, dry counter. Keep it away from the stove.

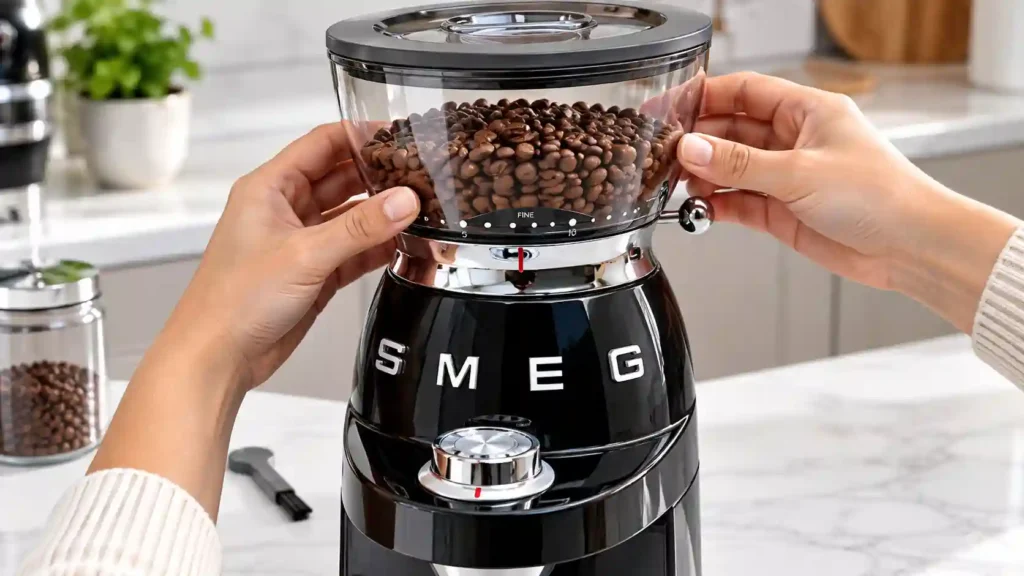

4. Seat the hopper on the base. Line up the arrow marks. Twist it clockwise until it locks.
5. Check the grind lever. One reviewer of the older CGF01 found the lever easy to nudge during the hopper twist.
6. Fit the container. Set the support plate under the outlet. Twist the ground-coffee container into place. Open its silicone cap.
7. Plug in the grinder.
8. Add a small handful of beans. Don’t fill the hopper on day one.
9. Pick a grind level. Use the lever to choose superfine, fine, or medium.
10. Turn the knob to a preset and press start. The grinder stops on its own, except in manual mode.

The friction point here is step 2. Smeg’s manuals for this grinder line call for hand washing, so the dishwasher is out. It’s a small chore, but it matters if you planned to load these parts in with the dishes.

Run a first test grind

Grind a small batch and throw it away. That way, any residue from manufacturing stays out of your first cup.

The presets run on a timer, not a scale. Output weight changes with bean type and grind level. Weigh one preset’s output on a kitchen scale and write the number down, because it gives you a baseline for later.

Manual mode needs more attention. The grinder won’t shut itself off, so stay beside it the whole time.

Once the basic setup works, the portafilter workflow is the next thing to learn, because it works differently.

How Do You Set Up the CGF03 for Espresso with a Portafilter?

Fit the steel portafilter support, rest a 58 mm portafilter on it with the funnel on top, then pick the single or double espresso function. This replaces grinding into the container, and many setup guides skip it.

1. Remove the ground-coffee container.
2. Fit the steel portafilter support.
3. Rest the portafilter on the support.
4. Place the dosing funnel on top of the portafilter.
5. Choose the single or double function.
6. Let the grinder finish.
7. Remove the portafilter and level the grounds.

The funnel is sized for 58 mm portafilters only. If your machine uses a different basket size, the funnel won’t seat properly. Compatibility with non-Smeg machines is covered in the FAQ below.

Presets are timed, so single and double doses will vary with your beans. Weigh your first few doses and note them before you pull a shot.

Here is a plain judgment call. Smeg says the CGF03 works with its own coffee machines. Seattle Coffee Gear positions it for finer grinds suited to pressurized baskets. If you pull shots with a non-pressurized basket, you’ll likely want a grinder with finer steps than 15.

On a weekday morning, the espresso preset is still faster than timing grinds by hand. That convenience is the main reason to use it.

Which Grind Setting and Preset Should You Start With?

Match the sector to your brew method, start in the middle of it, and change one step at a time. The CGF03 has 15 macro levels in three sectors and 8 presets plus manual mode. A starting map keeps you from guessing. That is the practical side of how to setup SMEG CGF03 Burr Coffee Grinder settings for a new kitchen.

Brew method	Sector	Notes
Espresso	Superfine	Pair with the single or double preset
Moka pot	Fine	Start here, then adjust to taste
Drip / pour-over	Medium	Use a cup-count preset for daily brewing
French press / cold brew	Medium, at best	See below

The coarse end is the catch. Smeg’s U.S. spec lists three sectors: superfine, fine, and medium. Yet Smeg’s own product copy also names French press among the supported methods. Seattle Coffee Gear describes the grinder as best in the medium range. Treat French press as a test. Grind a small batch and check the particle size before you commit a full bag.

The level count is also murky. Smeg’s European and Australian copy says “up to 50 degrees of fineness,” and one Australian retailer lists 50 levels. Smeg’s U.S. spec lists 15 macro levels and nothing finer. Count the positions on your own dial.

Don’t move the lever or turn the knob while the grinder is running. Smeg’s older CGF01 manual warns against both.

Daily routine decides the mode. The cup-count preset suits weekday mornings. Manual mode suits small amounts and weekend batches.

For a longer look at grind consistency, see the SMEG CGF03 Burr Coffee Grinder Review.

What Should You Do When Dark Roast Clumps or Clogs the Chute?

Move one step coarser, then brush the chute and burr area. Oily dark roasts are the most common reason a freshly set-up grinder starts to clump and slow down.

Smeg’s grinder guidance names oily beans, compaction, and a clogged chute as the usual causes. It points to a coarser setting and a drier roast as the first fixes.

1. Unplug the grinder.
2. Move the lever one step coarser.
3. Brush the outlet chute with the included brush.
4. Brush the burr area.
5. Test with a small batch.

Retention matters here. One 2026 review of Smeg’s older CGF01 got only 18 g of grounds from a 20 g dose. Brushing after each session keeps that residue from building up.

The inconvenient part is that this fix repeats. Oily roasts leave residue every time, so expect to reach into the chute whenever you switch to a darker bean.

What Setup Problems Are Common, and How Do You Fix Them?

Most no-start problems come from a poorly seated hopper or container. Most weak output comes from a clogged chute or a loose burr. Check the simple causes first, and always unplug the grinder before touching any part.

Symptom	Likely cause	Fix
Won’t start	Hopper or container not seated	Unplug. Reseat both parts. Try another outlet.
Stops mid-grind	Motor thermal protection	Let it rest. Smeg’s grinder manuals suggest roughly 15 minutes.
Motor runs, no grounds	Clogged chute, oily beans, or loose upper burr	Brush the chute. Go one step coarser. Check the burr seat.
Output drops	Upper burr missing or loose	Reseat the upper burr.

Manual mode makes the thermal stop easier to hit. Smeg’s older CGF01 manual stops manual grinding automatically at 90 seconds. Check your CGF03 manual for its exact limit.

The burr seat is the easiest fix to get wrong. On Smeg’s grinders, the upper burr turns counterclockwise to release. To refit it, match the two notches and turn it clockwise until it locks. Expect some resistance. One reviewer said loosening it took real force, so stop if a threaded part feels like it’s binding.

FAQ

Can I use the CGF03 with a non-Smeg espresso machine?
Smeg states compatibility with its own coffee machine range. The 58 mm funnel suits 58 mm portafilters, so check your basket size first. Seattle Coffee Gear says finer grinds suit pressurized baskets, which hints at where this grinder is happiest.

Is a European CGF03 safe to use in the U.S.?
No. EU units are built for 220–240V, while the U.S. model runs on 120V. A plug adapter changes the shape of the plug, not the voltage. Buy a model with the “US” suffix.

What warranty does the CGF03 have?
In the U.S., Seattle Coffee Gear lists a 1-year manufacturer warranty backed by SMEG USA. European retailers list 2 years. Register your unit with Smeg and keep your receipt.

Can it grind coarse enough for French press or cold brew?
Sources disagree. Smeg’s copy names French press, but its U.S. spec tops out at the medium sector. Test a small batch on the coarsest setting and judge it by the cup.

Is the CGF03 BPA-free?
Smeg’s U.S. spec lists the bean container and the ground-coffee container as BPA-free plastic. It makes no FDA claim, so don’t assume one.

How much does it cost, and where should I buy it?
Seattle Coffee Gear lists the CGF03 at $249.95 as of October 2026. It’s also sold on Amazon and other U.S. retailers. Prices and stock vary by seller, so compare before you buy.
