How to Set Up KitchenAid KCG0702CS Burr Grinder

☕ Table of Contents

▼

Written by Emma Wilson, 5 years hands-on experience with home coffee-grinding equipment. Last updated: July 31, 2026.

My first KitchenAid grinder sat sealed in its box for two days — I dreaded the setup. How to set up KitchenAid KCG0702CS Burr Coffee Grinder takes three parts and a few minutes. No tools, no app pairing. This guide covers unboxing, assembly, grind settings, and pre-batch checks. The grinder has 15 grind settings, stainless steel cutting burrs, a 7 oz. glass bean hopper and grind jar, and a die-cast metal design.

What’s in the Box and Where to Put the Grinder

The box includes five parts: the grinder body, hopper, jar, scoop, and brush. Set it up near an outlet, on a flat counter. Leave headroom above the lid for refills.

The grinder ships with a 7-ounce glass bean hopper and grind jar. It also includes a 15-setting dial, stainless steel burrs, and a die-cast metal body. A handheld scoop and cleaning brush come along too.

Bean hopper — 7-ounce glass, with a press-fit lid

Grind jar — glass, sits on the jar platform
Grind selector dial — 15 settings, half-step increments
On/off switch
Stainless steel cutting burrs in a die-cast metal body
Handheld scoop and cleaning brush

Pick a spot near your coffee maker, not a cabinet shelf. The hopper lifts straight up for refilling, so it needs a few inches of clearance overhead. A spot near the kettle works too.

The KCG0702CS measures about 5.9 inches deep, 10 inches wide, and 9.8 inches tall. It weighs 9.9 pounds. The weight keeps it steady in use. Leave a little slack in your counter plan for the cord and plug.

The KCG0702CS runs on 120 volts, built for U.S. outlets. No adapter or converter needed, unlike the 220–240V version sold overseas.

Wash the bean hopper and grind jar in warm, soapy water first. Dry every piece well before assembly. Leftover moisture near the burrs can throw off your first grind.

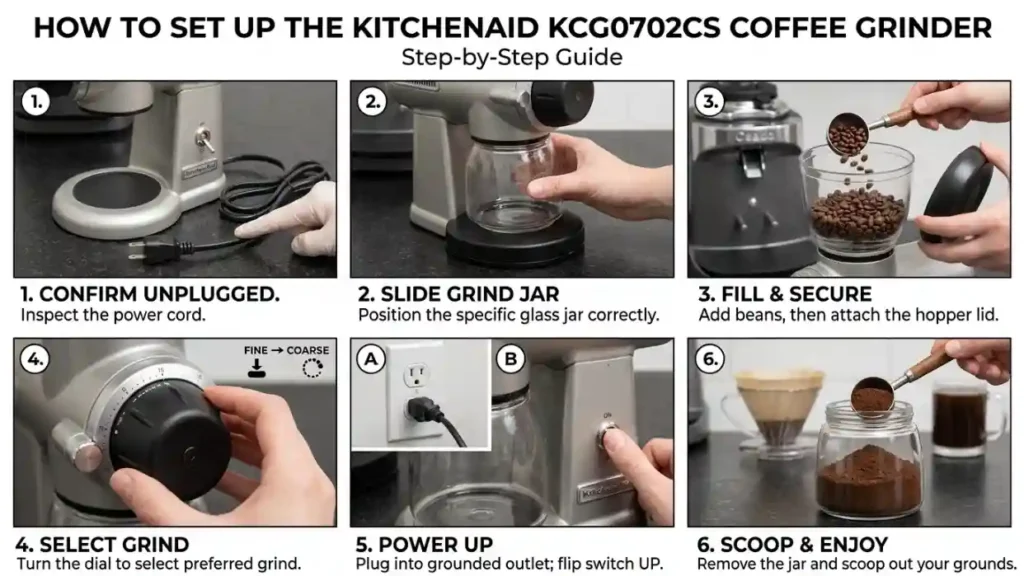

How to Set Up the KitchenAid KCG0702CS Step by Step

Setup is six steps: plug in, seat the jar, load the hopper, pick a grind level, flip the switch, and empty the jar. Once beans are loaded, most of that first run is done in well under a minute.

Start with the grinder unplugged. Check that no cord is near water or a wet counter. Keeping the burrs untouched at this stage matters too.

Confirm it’s unplugged. Don’t attach or adjust any parts with the cord in the outlet.
Slide the grind jar onto the jar platform. It sits flush under the burrs, so it should click into place without force.
Fill the bean hopper, then attach the lid. Loose grounds can stick between the burrs after a run, so it’s easier to bump the dial finer while the grinder’s still going, not after you’ve switched it off.
Select your grind setting. The next section walks through matching a level to your brew method.
Plug into a grounded 120V outlet, then flip the POWER switch up. Grinding starts right away — no warm-up, no waiting.
After grinding, remove the ground jar and scoop out your coffee. Flip the switch back down once you’ve pulled enough for your pot.

That covers a full cycle for a single hopper load, start to finish. Times will vary a little by grind setting, since finer grinds take longer to pass through the burrs.

One safety note worth repeating: don’t remove the ground prong on the plug, and skip any two-prong adapter. Older kitchen outlets sometimes only take two prongs, and that trips people up on the very first setup.

How to Choose the Right Grind Setting for Your Brew Method

The dial runs in half-step increments from 1 to 8. Low numbers give you an espresso-fine grind, and high numbers land you at French press-coarse. Drip coffee sits right in the middle.

That range covers pretty much every home brew method. Fifteen total settings sit inside those eight numbers, so you get finer control than a plain 1-through-8 scale suggests.

Setting range	Best for
1–2	Espresso
3–4	Moka pot / pour-over
5–6	Drip coffee makers
7–8	French press / cold brew

Weekend mornings usually mean French press for me, set around 7. On a weekday, I’ll bump the dial down to 4 for a quick pour-over instead. Same hopper load, two different cups, just a quarter-turn apart.

Pay attention to how the dial feels while you turn it. A properly seated burr gives you steady, even resistance the whole way around. If it spins loosely or offers no resistance at all, the burrs probably aren’t sitted right, and that’s worth checking before your next grind.

This dial setup is a step up from one-touch blade grinders you’ll find from brands like Cuisinart or Black+Decker. You give up a little convenience, but the more consistent grind size is worth it for better-tasting coffee. In our KitchenAid KCG0702CS Burr Coffee Grinder Review, we found this grind consistency to be one of the grinder’s biggest strengths during everyday testing.

One spec worth knowing: the burrs spin at 450 RPM. KitchenAid says that lower speed cuts down on frictional heat, which helps protect flavor during the grind.

What to Check Before Your First Real Batch (Mini Case Study)

Run one throwaway batch first. It settles the burrs, clears out any manufacturing dust, and confirms the grind actually matches the dial before you commit good beans to it.

My first run went straight to a mid-range drip setting, right out of the box. Nothing fancy — I just wanted coffee that morning.

The first few seconds of output looked dusty, with visibly more fine powder mixed into the grounds than a second batch produced later. New burr equipment often does this on the very first pass, and it’s not a sign anything’s wrong.

I tossed that first small batch, wiped out the jar, and ran a second load at the same setting. Grind consistency evened out noticeably by that second pass, with far less powder mixed into the coffee. That gave me confidence the burrs were seated right and the dial was reading true.

While you’re at it, check that the grind dial turns freely down to level 1. It shouldn’t need any force. Forcing it while the burrs are still settling can damage them.

One last tip: jot down today’s date somewhere, maybe a sticky note inside a cabinet. Future grind changes will have a clear baseline to compare against.

FAQs

Is the KCG0702CS dishwasher-safe?
The glass hopper, its lid, and the grind jar all go in the dishwasher. Skip the motor housing and burr assembly, though. Wipe those down by hand instead.

What’s the warranty on this grinder?
It carries a one-year full warranty from your purchase date. KitchenAid handles replacements through an authorized service center, no hassle involved.

Can it grind anything besides coffee beans?
Yes — spices, nuts, and grains all work fine in this grinder. Just clean the hopper and burrs well between coffee and non-coffee use. Otherwise flavors can carry over.

Where can I get replacement parts, like the glass jar?
Kitchen parts retailers and online marketplaces carry replacement jars built for the KCG0702 line. Double-check model compatibility first, since jar sizing shifts slightly between KitchenAid grinder generations.
